微动开关

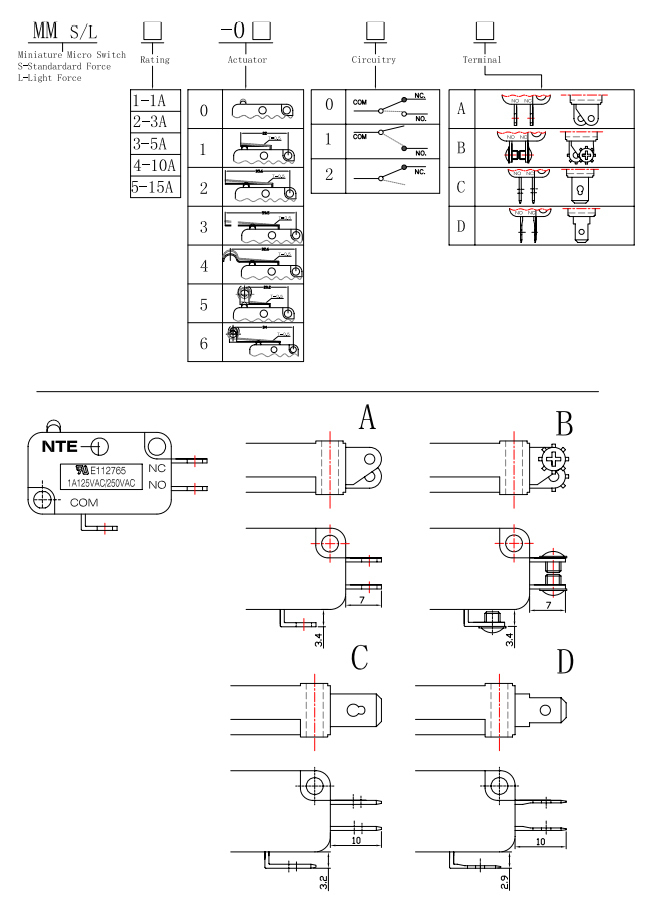

MM4-000C

Typical Specification

  1. Rating: 10A 125/250 VAC
  2. Operating Force 250±50g
  3. Release Force 130±40g
  4. Free Position 15.5±0.3mm
  5. Operating Position 14.3±0.4mm
  6. Operating life: 50,000 cycles.

MM4-010C

Typical Specification

  1. Rating: 10A 125/250 VAC
  2. Operating Force 150±50g
  3. Release Force 100±30g
  4. Free Position 16.0±0.8mm
  5. Operating Position 15.0±0.8mm
  6. Operating life: 50,000 cycles.

MM4-020C

Typical Specification

  1. Rating: 10A 125/250 VAC
  2. Operating Force 100±30g
  3. Release Force 50±10g
  4. Free Position 17.2±0.8mm
  5. Operating Position 14.2±0.8mm
  6. Operating life: 50,000 cycles.

MM4-030C

Typical Specification

  1. Rating: 10A 125/250 VAC
  2. Operating Force 60±20g
  3. Release Force 30±10g
  4. Free Position 16.2±1.0mm
  5. Operating Position 12.5±1.0mm
  6. Operating life: 50,000 cycles.

MM4-040C

Typical Specification

  1. Rating: 10A 125/250 VAC
  2. Operating Force 100±30g
  3. Release Force 50±10g
  4. Free Position 19.0±1.0mm
  5. Operating Position 17.5±1.0mm
  6. Operating life: 50,000 cycles.

MM4-050C

Typical Specification

  1. Rating: 10A 125/250 VAC
  2. Operating Force 220±60g
  3. Release Force 100±30g
  4. Free Position 21.0±0.8mm
  5. Operating Position 20.0±0.8mm
  6. Operating life: 50,000 cycles.

MM4-060C

Typical Specification

  1. Rating: 10A 125/250 VAC
  2. Operating Force 120±35g
  3. Release Force 60±20g
  4. Free Position 22.0±1.0mm
  5. Operating Position 21.0±1.0mm
  6. Operating life: 50,000 cycles.

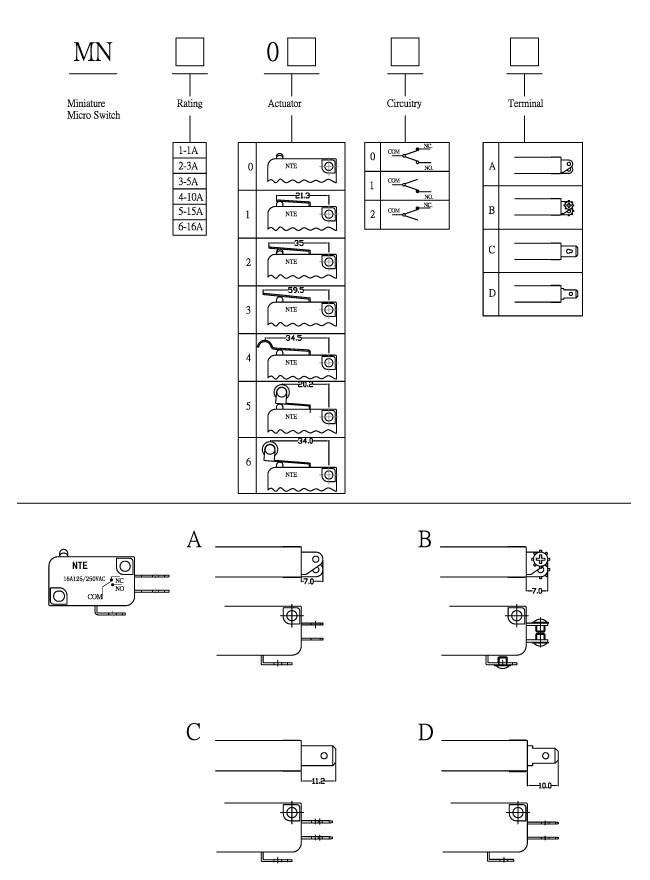

MN3-000C

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force 250±80g
  3. Release Force 100±30g
  4. Free Position 15.5±0.3mm
  5. Operating Position 14.7±0.4mm
  6. Operating life: 50,000 cycles.

MN3-001D-PC1

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. It is a low pressure switch assembly and use in R.O. Filter System

MN3-010C

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force 195±50g
  3. Release Force 120±35g
  4. Free Position 16.3±1.0mm
  5. Operating Position 15.9±1.0mm
  6. Operating life: 50,000 cycles.

MN3-020C

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force 90±20g
  3. Release Force 50±10g
  4. Free Position 17.5±1.0mm
  5. Operating Position 14.8±1.0mm
  6. Operating life: 50,000 cycles.

MN3-030C

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force 40±15g
  3. Release Force 30±10g
  4. Free Position 19.3±1.0mm
  5. Operating Position 14.5±1.0mm
  6. Operating life: 50,000 cycles.

MN3-040C

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force 100±30g
  3. Release Force 60±20g
  4. Free Position 21.0±2.0mm
  5. Operating Position 18.5±2.0mm
  6. Operating life: 50,000 cycles.

MN3-050C

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force 250±80g
  3. Release Force 120±35g
  4. Free Position 21.7±1.0mm
  5. Operating Position 20.5±1.0mm
  6. Operating life: 50,000 cycles.

MN3-060C

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force 90±20g
  3. Release Force 50±10g
  4. Free Position 22.0±1.0mm
  5. Operating Position 21.0±1.0mm
  6. Operating life: 50,000 cycles.

MN4-002D-PC2

Typical Specification

  1. Rating: 10A 125/250 VAC
  2. It is a high pressure switch assembly and use in R.O. Filter System

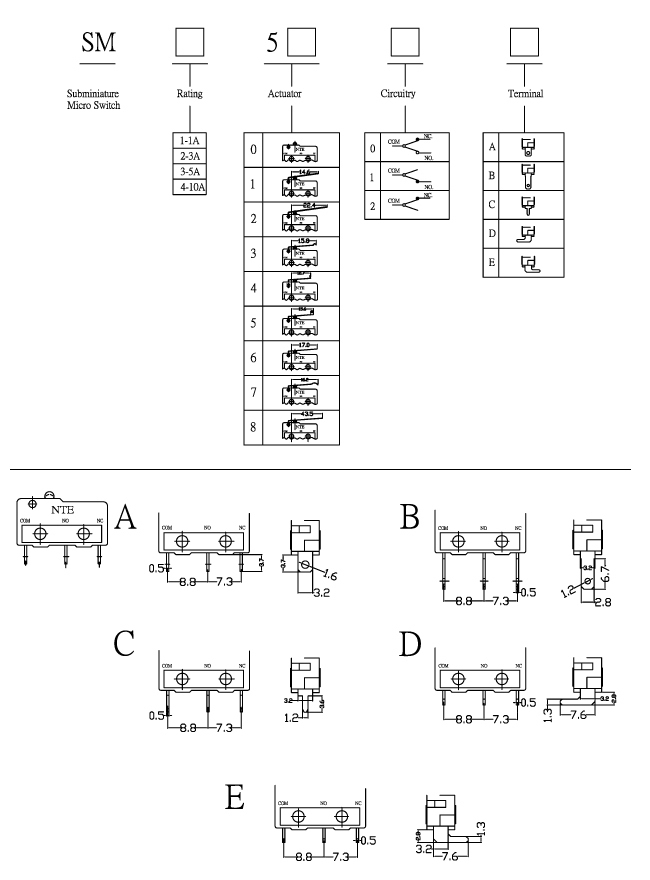

SM3-500A

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force: 160±50gf
  3. Release Force: 100±30gf
  4. Free Position: 9.3±0.3mm
  5. Operating Position: 8.9±0.3mm
  6. Operating life: 50,000 cycles.

SM3-510A

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force: 30±15gf
  3. Release Force: 15±10gf
  4. Free Position: 11.0±0.8mm
  5. Operating Position: 9.0±0.8mm
  6. Operating life: 50,000 cycles.

SM3-520A

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force: 50±20gf
  3. Release Force: 15±4gf
  4. Free Position: 13.60±0.80mm
  5. Operating Position: 11.00±0.80mm
  6. Operating life: 50,000 cycles.

SM3-530A

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force: 22±8gf
  3. Release Force: 12±4gf
  4. Free Position: 15.0±0.60mm
  5. Operating Position: 13.3±0.60mm
  6. Operating life: 50,000 cycles.

SM3-540A

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force: 50±20gf
  3. Release Force: 35±15gf
  4. Free Position: 13.8±0.60mm
  5. Operating Position: 12.2±0.60mm
  6. Operating life: 50,000 cycles.

SM3-550A

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force: 60±20gf
  3. Release Force: 40±20gf
  4. Free Position: 16.1±0.60mm
  5. Operating Position: 14.3±0.40mm
  6. Operating life: 50,000 cycles.

SM3-560A

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force: 33±15gf
  3. Release Force: 17±10gf
  4. Free Position: 12.0±0.8mm
  5. Operating Position: 11.0±0.8mm
  6. Operating life: 50,000 cycles.

SM3-570A

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force: 50±15gf
  3. Release Force: 30±15gf
  4. Free Position: 13.0±0.8mm
  5. Operating Position: 10.8±0.8mm
  6. Operating life: 50,000 cycles.

SM3-580A

Typical Specification

  1. Rating: 5A 125/250 VAC
  2. Operating Force: 6±3gf
  3. Release Force: 4±2gf
  4. Free Position: 16.6±1.0mm
  5. Operating Position: 10.8±0.8mm
  6. Operating life: 50,000 cycles.

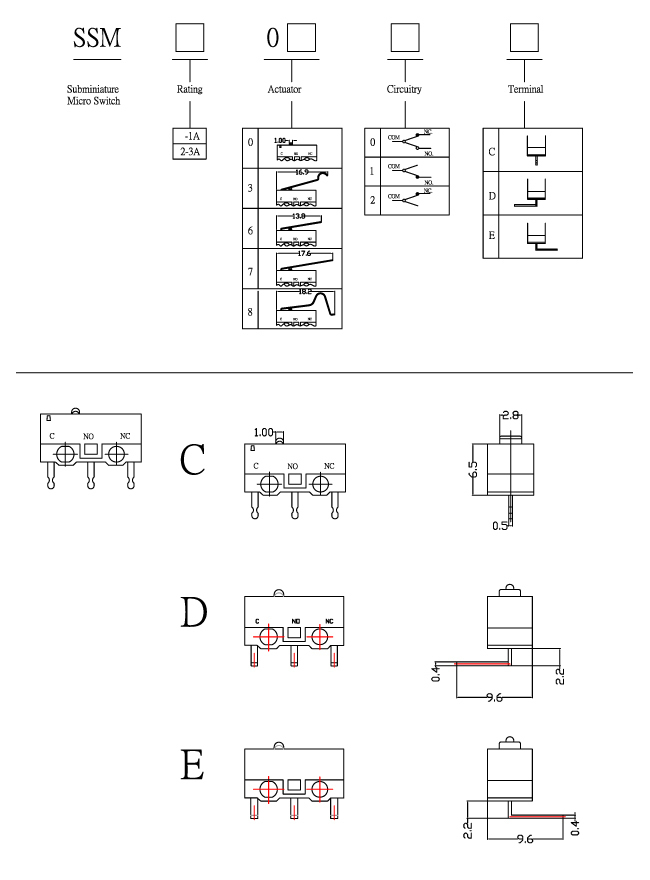

SSM-000C

Typical Specification

  1. Rating: 1A 125/250 VAC
  2. Operating Force: 100±35gf
  3. Release Force: 55±20gf
  4. Free Position: 5.7±0.3mm
  5. Operating Position: 5.5±0.3mm
  6. Operating life: 50,000 cycles.

SSM-030C

Typical Specification

  1. Rating: 1A 125/250 VAC
  2. Operating Force: 25±15gf
  3. Release Force: 10±7gf
  4. Free Position: 10.0±0.8mm
  5. Operating Position: 8.2±0.8mm
  6. Operating life: 50,000 cycles.

SSM-060C

Typical Specification

  1. Rating: 1A 125/250 VAC
  2. Operating Force: 30±15gf
  3. Release Force: 20±15gf
  4. Free Position: 7.9±1.0mm
  5. Operating Position: 6.2±0.8mm
  6. Operating life: 50,000 cycles.

SSM-070C

Typical Specification

  1. Rating: 1A 125/250 VAC
  2. Operating Force: 30±15gf
  3. Release Force: 20±15gf
  4. Free Position: 11.0±0.8mm
  5. Operating Position: 9.1±0.8mm
  6. Operating life: 50,000 cycles.

SSM-080C

Typical Specification

  1. Rating: 1A 125/250 VAC
  2. Operating Force: 105±20gf
  3. Release Force: 70±10gf
  4. Free Position: 8.0±1.0mm
  5. Operating Position: 6.0±0.8mm
  6. Operating life: 50,000 cycles.
